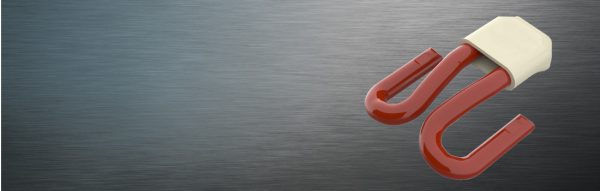

Rail Clip
- Description
Description
Rail clips require fatigue-resistant spring steel with consistent properties to meet our customers’ stringent and safety-critical requirements.
Our wire rod for rail clip applications addresses the industry’s needs for strength, formability, ductility and fatigue resistance.
Our spring grades have a uniform microstructure to facilitate efficient downstream processing, combined with dimensional accuracy and excellent surface quality, ensuring reliable long life in track.
It’s supplied with a fine lamellar pearlite structure for optimum wire drawing and can also be supplied with an annealed structure for enhanced formability.
Dimensional Capability
| Description | Range |
|---|---|
| Rod diameter | 5.5-15.0mm in 0.5mm increments |
| Coil weight | 1,800-2,200kg |
| Coil length | 1,400-1,650mm |
| Coil dimensions | Outside diameter 1,250mm max Inside diameter 850mm min |
Please consult us if you have any other specific requirements.
