Carbon Steel

Description

Description

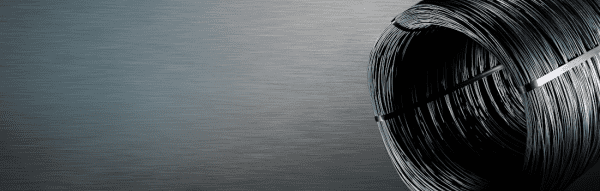

For applications where strength and hardness are a must, our carbon steels have you covered. Available in low, medium and high-carbon options, our carbon steel wire rod is used by a wide array of sectors including bedding and seating, construction, and offshore, to meet their exacting requirements.

We understand that end applications will influence your steel selections and the specific mechanical and surface properties required for downstream processing. That’s why our carbon steel wire rod is designed for a wide range of uses, each increasing in strength and hardness as the carbon content increases.

Our low carbon steel range is used in applications such as concrete reinforcement and fencing where longevity and durability are key.

Some of our high carbon grades are tailored to customer specific requirements to be used in more niche applications such as bedding and seating, and also for the production of cables and ropes for the oil & gas and renewables sectors.

Our team of technical experts provides dedicated support from point of enquiry and grade selection, through to after sales service. Our short-cycle rolling programme also allows us to be responsive and to deliver the steel you need just in time to meet your production schedules.

Dimensional capability

Description	Range
Rod diameter	5.5-17.0mm in 0.5mm increments
Coil weight	1,800-2,200kg
Coil length	1,400-1,650mm
Coil dimensions	Outside diameter 1,250mm max Inside diameter 850mm min
Coil dimensions	Outside diameter 1,250mm max Inside diameter 850mm min

Typical heat analysis

The table below indicates the typical heat analysis for our carbon grades which are manufactured according to the European standard EN 16120.

Standard	Grade	Heat Analysis
		C	Si	Mn	P	S	Cr	Ni	Mo	Cu	Al
EN16120	C4D	≤0.06	≤0.30	0.30-0.60	≤0.035	≤0.035	≤0.20	≤0.25	≤0.05	≤0.30	≤0.01
	C7D	0.05-0.09	≤0.30	0.30-0.60	≤0.035	≤0.035	≤0.20	≤0.25	≤0.05	≤0.30	≤0.01
	C9D	≤0.10	≤0.30	0.30-0.60	≤0.035	≤0.035	≤0.20	≤0.25	≤0.05	≤0.30	≤0.01
	C12D	0.10-0.15	≤0.30	0.30-0.60	≤0.035	≤0.035	≤0.20	≤0.25	≤0.05	≤0.30	≤0.01
	C15D	0.12-0.17	≤0.30	0.30-0.60	≤0.035	≤0.035	≤0.20	≤0.25	≤0.05	≤0.30	≤0.01
	C18D	0.15-0.20	≤0.30	0.30-0.60	≤0.035	≤0.035	≤0.20	≤0.25	≤0.05	≤0.30	≤0.01
	C20D	0.18-0.23	≤0.30	0.30-0.60	≤0.035	≤0.035	≤0.20	≤0.25	≤0.05	≤0.30	≤0.01
	C26D	0.24-0.29	0.10-0.30	0.50-0.80	≤0.030	≤0.030	≤0.20	≤0.25	≤0.05	≤0.30	≤0.01
	C38D	0.35-0.40	0.10-0.30	0.50-0.80	≤0.030	≤0.030	≤0.20	≤0.25	≤0.05	≤0.30	≤0.01
	C42D	0.40-0.45	0.10-0.30	0.50-0.80	≤0.030	≤0.030	≤0.20	≤0.25	≤0.05	≤0.30	≤0.01
	C48D	0.45-0.50	0.10-0.30	0.50-0.80	≤0.030	≤0.030	≤0.15	≤0.20	≤0.05	≤0.25	≤0.01
	C56D	0.53-0.58	0.10-0.30	0.50-0.80	≤0.030	≤0.030	≤0.15	≤0.20	≤0.05	≤0.25	≤0.01
	C60D	0.58-0.63	0.10-0.30	0.50-0.80	≤0.030	≤0.030	≤0.15	≤0.20	≤0.05	≤0.25	≤0.01
	C66D	0.63-0.68	0.10-0.30	0.50-0.80	≤0.030	≤0.030	≤0.15	≤0.20	≤0.05	≤0.25	≤0.01
	C70D	0.68-0.73	0.10-0.30	0.50-0.80	≤0.030	≤0.030	≤0.15	≤0.20	≤0.05	≤0.25	≤0.01
	C76D	0.73-0.78	0.10-0.30	0.50-0.80	≤0.030	≤0.030	≤0.15	≤0.20	≤0.05	≤0.25	≤0.01
	C78D	0.75-0.80	0.10-0.30	0.50-0.80	≤0.030	≤0.030	≤0.15	≤0.20	≤0.05	≤0.25	≤0.01
	C80D	0.78-0.83	0.10-0.30	0.50-0.80	≤0.030	≤0.030	≤0.15	≤0.20	≤0.05	≤0.25	≤0.01
	C86D	0.83-0.88	0.10-0.30	0.50-0.80	≤0.030	≤0.030	≤0.15	≤0.20	≤0.05	≤0.25	≤0.01
	C88D	0.85-0.90	0.10-0.30	0.50-0.80	≤0.030	≤0.030	≤0.15	≤0.20	≤0.05	≤0.25	≤0.01
