To select the appropriate steel sleeper for your requirements, please click on the profile you are interested in from the table below. Our available profile downloads will be displayed, providing all key dimensions.

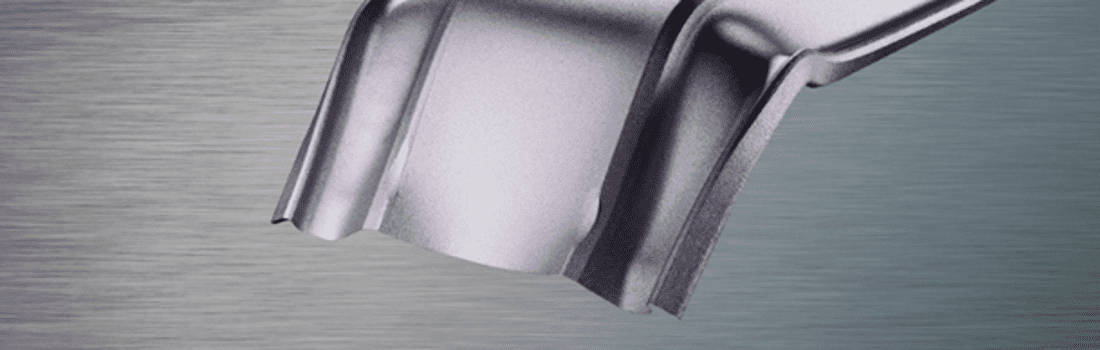

Sleeper / Railroad tie profiles
| 202 sleeper | 300 sleeper | 402 sleeper | 436 sleeper | 600 sleeper |
Our finished sleepers are available in a wide range of rail gauges including narrow, metre, standard and broad gauges. Dual gauge sleepers are also possible depending on project volumes.
The table below shows the sleeper type required based on tonnage/axle load and train speed on the intended track. At lower axle loads and lower speeds a lighter sleeper is suitable i.e. 202, where as for higher loads and speeds a heavier sleeper is needed i.e. 600.
This chart is fixed for a standard rail guage of 1435mm, rail profile of CEN 60 and a sleeper spacing of 650mm. Other charts can be provided for alternative combinations of rail profile, gauge and sleeper spacing.
Not found exactly what you’re looking for? New and bespoke steel sleeper profiles will be considered based on minimum order quantities. CAD drawings may be available on request – please contact us to discuss your needs.
If you’ve taken the wrong track, you can take a diversion to find vignole or crane rail dimensions.
Our products and grades can be matched precisely to track conditions, track types, environmental conditions and lots of other variables to ensure that every product we deliver provides the best performance throughout its service life.
If you’d like further information, advice or availability, please contact us.
